Learning Objectives

This openFrameworks Example is designed to demonstrate setting colors using HSB (Hue/Saturation/Brightness) rather than the more well-known RGB (Read/Green/Blue).

In this example, pay attention to the following code:

• Creating a variable to store the color ofColor colorName
• Setting the HSB value colorName.setHsb(float hue, float saturation, float brightness)
• Command for setting the active color, such as ofSetColor()
• How to map hue values from 0 - 255 and set colors using these values -- command used to map hue from 0 to 255, same concept as % integer modulo (the % operator) for floats fmodf(float, float)

####HSB Definition

• Hue refers to the 'color' in the rainbow sense, moving from red through yellow through; green through blue through purple through red, looping around again.
• Saturation refers to the intensity of the color. high saturation means intense color,low saturation means washed out or black and white.
• Brightness refers to how light or dark the color is. high brightness means a bright color, low brightness is dark. if the brightness is 0 the resulting color will be black, regardless of the values for hue or saturation.

Expected Behavior

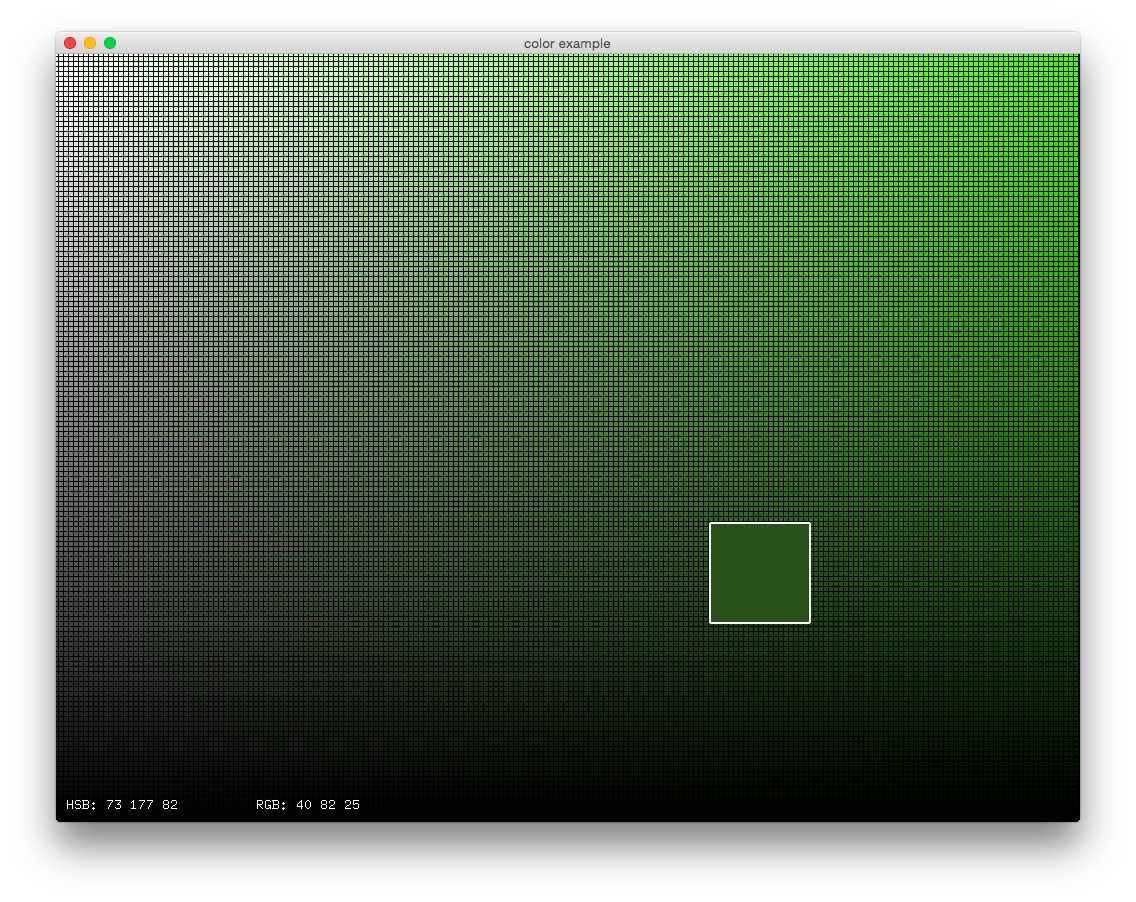

When launching this app, you should see:

• a screen with with a grid of 5 pixel x 5 pixel rectangles with a fixed hue, varying in saturation and brightness over x and y
• you will also see a larger rectangle that takes the color under the mouse.

Instructions for use:

• Move your mouse to see the different colors across the grid.

Other classes used in this file

This Example uses no additional classes.
